Broadcast Lenses

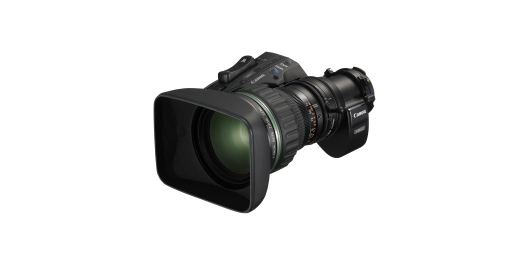

Canon KJ17ex7.7B IRSE / IASE
Affordable 2/3” portable standard lens with excellent focal range, optical performance, and handling.
Affordable standard lens with great optical performance and Enhanced Digital Drive
The KJ17ex7.7B is an affordable 2/3” portable standard lens with excellent focal range and optical performance. Ergonomic design creates improved handling with less fatigue.
Benefits
-
Focal range 7.7~102.5mm
-
MOD 0.6M (10mm with Macro)
-
Enhanced Digital Drive
-
Built-in 2x Extender
-
Ecological, robust ergonomic design
Detailed Features
-
Standard portable ENG lens
The KJ17ex7.7B and the HDgc line of lens have been specifically designed for low cost acquisition and this lens is particularly well suited to reality TV, newsgathering and other low budget HD productions.The KJ17ex7.7B’s short 7.7 mm focal length translates to a 63.9 degree horizontal angle of view for the 16:9 HD image format. Combined with a focal range that has been extended to now cover a range from 7.7mm to 131mm (and 262mm with extender) this lens offers unsurpassed operational capabilities in a compact package weighing less than 1.62kg. Focus breathing is significantly reduced. The maximum relative aperture is F1.9 which, combined with the typically F-10/11 sensitivity specifications of the contemporary HD ENG cameras, ensures excellent video pictures in very low light environments.
-
Optical Technologies
Newly developed optical materials combined with the very latest lens element design innovations and multilayer coatings - that produce an unsurpassed pristine imaging system for the most discerning production team.
-
Internal Focus
A Canon design innovation that uses a floating optical system to better control chromatic aberrations
-
Control Technologies
Enhanced servo system called Shuttle Shot that adds value-added creativity to handheld acquisition systems
-
Advanced Drive technology
Encompasses servo control that allows the operator to precisely zoom between tow pre-programmed zoom positions Maximum Zoom speed is 1.2 seconds over entire range
-
Mechanical Technologies
Ergonomic mechanical design that produced this HD lens having the same size and weight as its SDTV predecessor Compact drive unit is mounted to the lens at a 12.5 degree angle for comfort and balance Aluminum alloy body for light weight and exceptional durability
-
Ecological Design
All contemporary Canon lenses avoid the use of materials and substances potentially harmful to the environment. Lead has been removed from all optics, and other identified substances such as cadmium, mercury, PBBS etc from all components comprising the composite lens system.comprising the composite lens system.
