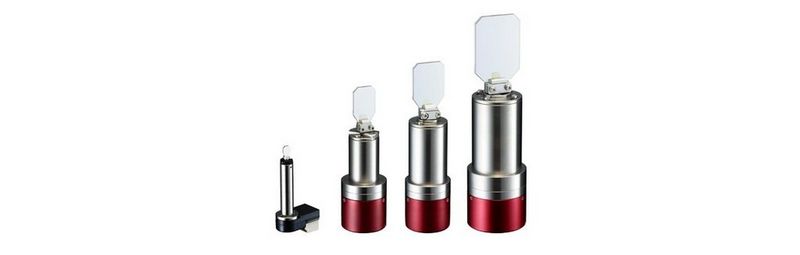

GM-1000 Series
Digital Galvano Scanners
Robust, reliable and highly accurate. The Canon GM-1000 Series of Digital Galvano Scanners are ideal for a wide range of laser applications
High-resolution Digital Galvano Scanners
Featuring Canon's Proprietary LED Optical Encoder, the GM-1000 Series offers class-leading resolution and low thermal drift, supporting laser beam diameters from 5 mm up to 30 mm
Precision Canon optical encoder
Built-in LED optical encoder and a high speed digital servo controller ensure incredible precision, surpassing all analogue galvano scanners on the market
Reliable thermal performance
Each Canon Digital Galvano Scanner will withstand continuous use, with a low thermal drift of less than just 3 μrad/degree over 8 hours when powered on and in use
Superb small step response
Small step response varies across the GM-1000 range, from 200 μsec in the 5 mm beam diameter GM-1005 to 540 μsec for the 20 mm beam GM-1020
Complete Galvano scanner component is available

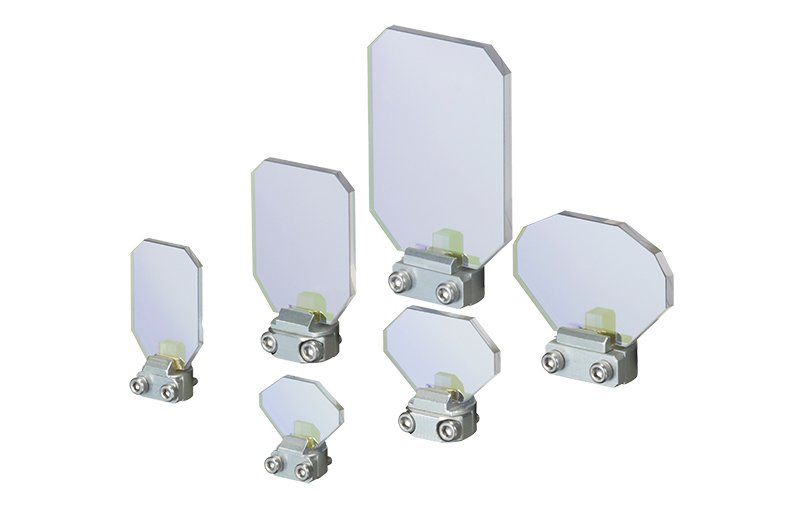

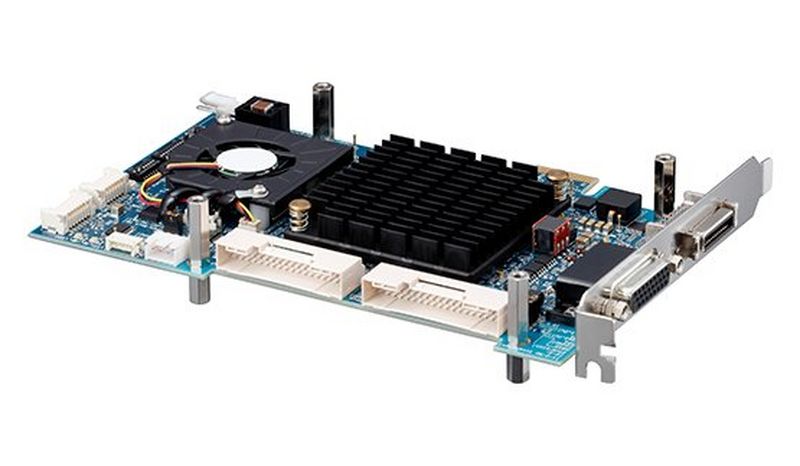

More than just Digital Galvano Scanner motor, servo driver, Canon offers a full range of optional components, including various wavelength cover mirror unit, scan head (three type), focus actuator, scanner controller and marking software
All-in-one support software
Scanner Control Software is an easy-to-use tool for controlling, tuning, and monitoring Canon Digital Galvano Scanners. Auto tuning options, and all data measurement function to see the Galvano scanner status

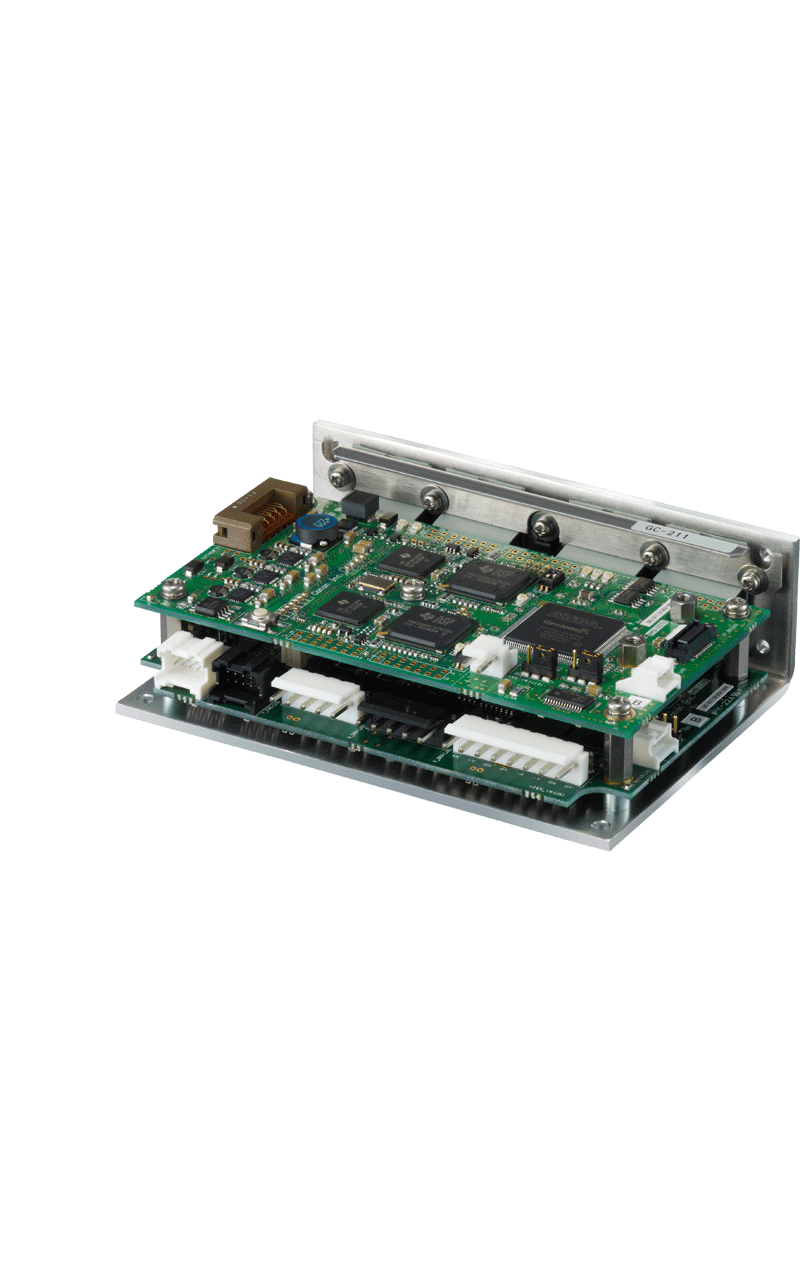

2-axis position feedback
Canon GM-1000 Series Digital servo driver has the position feedback function for 2-axis motor, and contribute to the high accurate and stable scanner motor control
Product specifications
0.51 μrad resolution (GM-1015 & GM-1020)
Achieve the high command resolution with the combination of GM-1000 series motor and driver
3 μrad position repeatability (all models)
For scanning accuracy and reliability
Super stable to environmental condition change / or low thermal drift
Encoder system in GM-1000 series contribute to the super stable to environment, thermal drift is 3 urad/degree
5-30 mm beam diameter
5 mm, 10mm, 14 mm, 20 mm, and 30 mm models
