200 wph
with throughput upgrade
Product

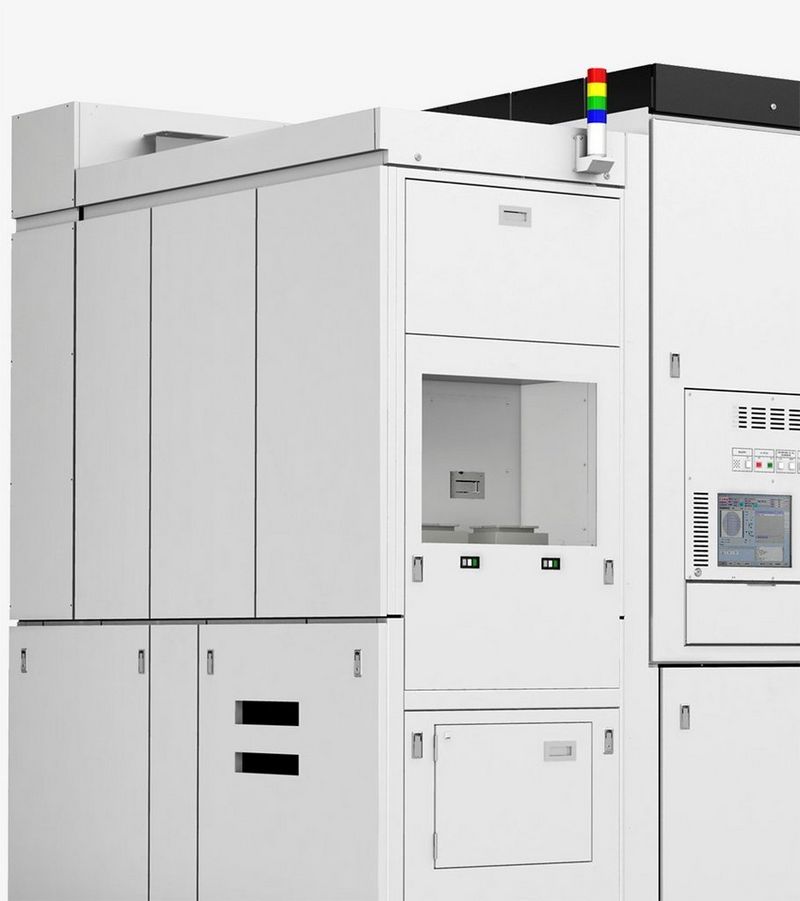

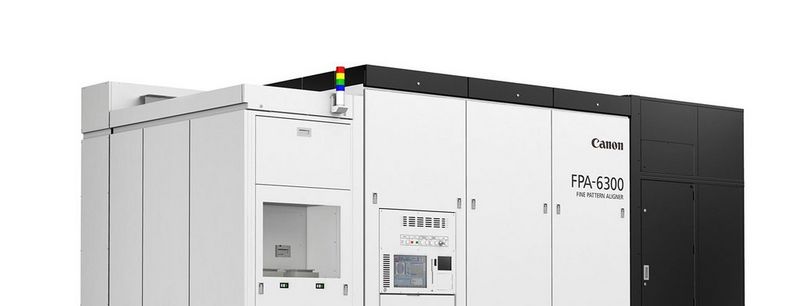

Canon FPA-6300ES6a KrF scanner
High-productivity KrF scanner for advanced chip processing.
1.6X
faster than previous models
≤ 90 nm
resolution
≤ 5 nm
overlay accuracy
Highly sophisticated mass production
Significantly reduce wafer handling, alignment and exposure processing times with advanced technologies. The Canon FPA-6300ES6a is designed for high volume production of devices such as microprocessors and colour filters.
Save time
Reticle and Wafer Stages improve productivity, alignment and wafer handling time.
Pinpoint accuracy
Overlay accuracy of less than 5 nm thanks to advanced stage-control technologies.
Scalability
Options and upgrades support next-generation semiconductor manufacturing.
Product Specifications
Resolution
≤ 90 nm
Wafer size
300 mm
Productivity
≥ 200 wafers per hour *
Exposure area
26 mm x 33mm
Overlay accuracy
≤ 5 nm, with overlay upgrade
Numerical Aperture (NA)
0.50 ~ 0.86
* - 300mm wfer, 98 shots, with Options
Find out how the Canon FPA-6300ES6a KrF scanner can transform your semiconductor manufacturing
Related Products

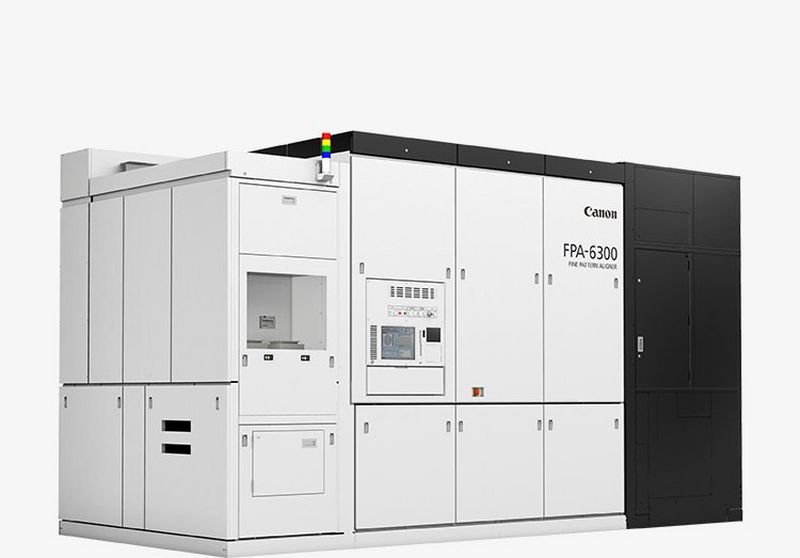

FPA-6300ESW
Wide-field KrF scanner with enhanced lens capabilities.
FPA-3030EX6
KrF Stepper for IoT1 devices using substrates of varying material, sizes and thicknesses.
Advance your business with Canon Industrial Products
1. IoT: Internet of Things
