Canon DP-V2411
24-inch Professional Reference Display with high luminance for HDR production
Do you want to be contacted by a Canon representative?
Please complete the short form to request a product specialist from Canon to contact you.
24-inch professional display with high luminance and accuracy
The DP-V2411 is a highly capable 24-inch 4K reference display, supporting HDR broadcast productions for quality control and HDR monitoring, ensuring that control room operatives are confident in the created output.
24-inch, 4K IPS LCD panel with high luminance
The DP-V2411 offers a 4K resolution with true colour reproduction along with full screen white with 600 cd/m² and 0.005 cd/m² black.

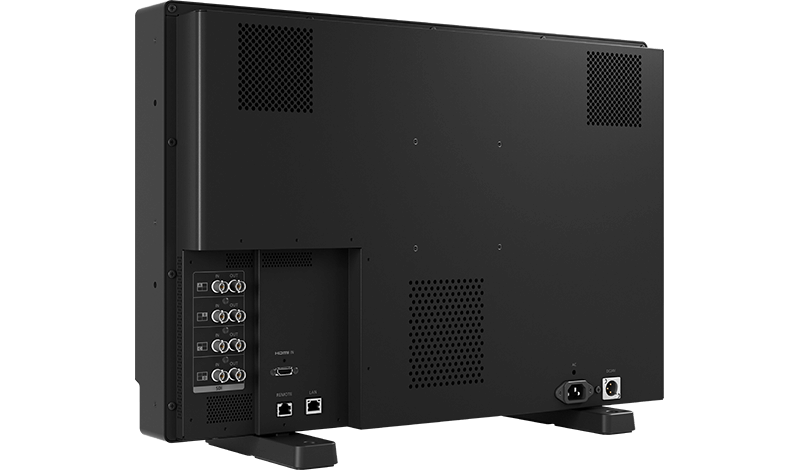

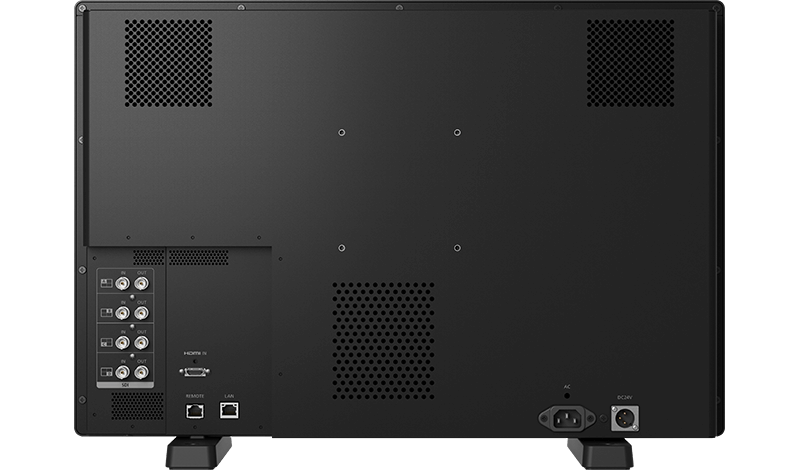

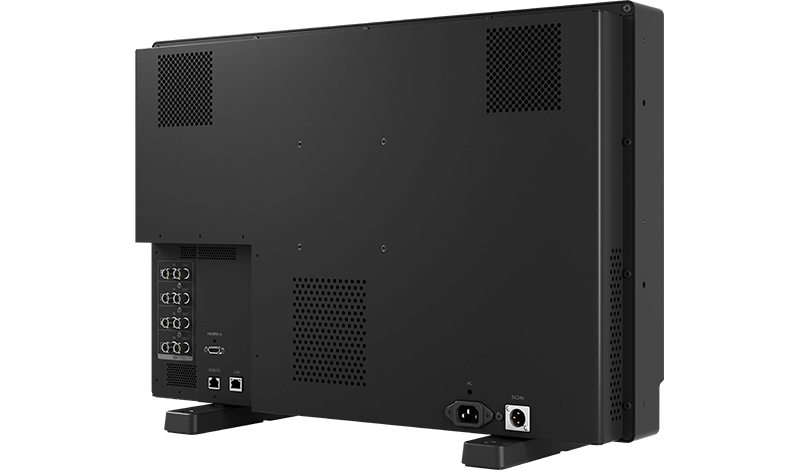

Advanced 4K interfaces
With 4x 12G-SDI interface support, the DP-V2411 can accept 4 channel 4K inputs from a variety of sources plus 4K input Quad 3G and 2SI support plus 4K YCC/RGB signals from HDMI.
HDR shooting assist functions
The DP-V2411 comes armed with a variety of HDR shooting assist tools including HDR EOTF, HDR Range Function, HDR False Colour, HDR waveform monitor and HDR metadata information.
Accurate image quality and multi format capability
DP-V2411 uses a direct matrix backlight LED panel which has been optimized to LCD panel to achieve stable, uniform and much wider colour gamut, and the DP-V2411 supports 4K, UHD, 2K and HD with various frame rates.
Camera compatibility
The Camera Link-Up feature of the DP-V2411 enables seamless linking to the Cinema EOS system cameras and the ARRI digital camera systems, allowing for increased flexibility on-set for broadcast and cinema production.
Robust and lightweight body
The aluminium frame design offers rigidity and strength, with 12 kg light weight. A slim 105mm body enables stable installation. Additionally, a removable carrying handle ensures optimum convenience.
Specifications
4K (4096x2160) resolution
UHD (3840x2160) resolution
2K (2048x1080) resolution
High Dynamic Range
12G-SDI interface
What's in the box
Video Display DP-V2411 Main Unit
AC Power Cord HT-21 (EU)
AC Power Cord Clamp HC-01
Instruction Manual
Caution Leaflet for unpacking and carrying
