By connecting the camera to a TV, you can view your shots on the larger screen of the TV.
For details on connection or how to switch inputs, refer to the TV manual.

Viewing images on a standard TV (using a Stereo AV Cable)

1. Make sure the camera and TV are off.

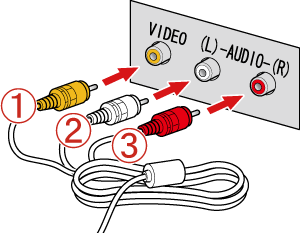

2. Connect the Stereo AV Cable (sold separately) to the TV’s video-in terminal and audio-in terminal.
Insert the yellow plug into the yellow VIDEO IN terminal on the TV.
Insert the white plug into the Left (white) AUDIO IN terminal on the TV.
Insert the red plug into the Right (red) AUDIO IN terminal on the TV.

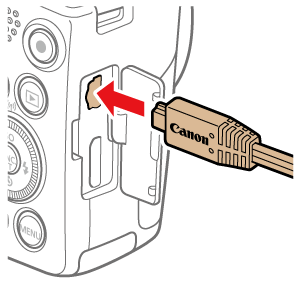

3. Connect the Stereo AV Cable (sold separately) to the camera’s [A/V OUT / DIGITAL] terminal.
*The example procedure is shown on the PowerShot SX510 HS. The position and shape of the operation buttons may differ according to the model you use.

4. Turn the TV on and switch to video input.

5. Press the <Playback> () button to turn the camera on.

Images from the camera are now displayed on the TV. (Nothing is displayed on the camera screen.)
When finished, turn off the camera and TV before disconnecting the Stereo AV Cable (sold separately).

Viewing images on an HD (High-Definition) TV (using an HDMI Cable)

Connecting the camera to an HDTV with the HDMI Cable HTC-100 (sold separately) enables you to view your shots on the larger screen of the TV. Movies shot at a resolution of [ ] or [ ] can be viewed in high definition.
When you connect the camera to an HDMI CEC-compatible TV, you can use the TV's remote control to operate the camera and play back images or view slideshows.

NOTE
Using the HDMI CEC function:

• Depending on the TV, you may need to adjust some TV settings. For details, refer to the TV manual.
• When using the HDMI CEC function, follow the steps below to make settings before connecting the camera to a TV.

1. Press the <> button to display the window below.

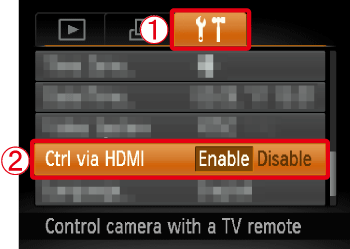

2. Choose the [Settings] tab () and set [Ctrl via HDMI] to [Enable].
3. Press the <> button.

1. Turn off the camera and the TV.

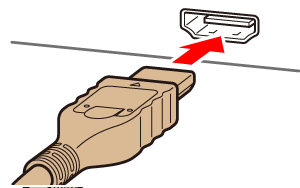

2. On the TV, insert the cable plug fully into the HDMI input as shown.

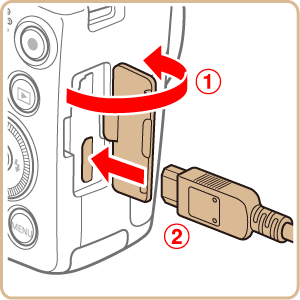

3. On the camera, open the terminal cover and insert the cable plug fully into the camera terminal.
*The example procedure is shown on the PowerShot SX510 HS. The position and shape of the operation buttons may differ according to the model you use.

4. Turn on the TV and switch it to HDMI mode.

5. Press the <Playback> () button to turn on the camera.
Images from the camera are now displayed on the TV. (Nothing is displayed on the camera screen.)

NOTE
While the HDMI CEC function is in use, operate the camera with the TV's remote control.

• Press the <><> buttons on the remote to browse images.
• To display the camera control panel, press the OK/Select button. Select control panel options by pressing the <><> buttons to choose an option, and then pressing the OK/Select button again.

<Camera Control Panel Options Shown on the TV>
[Return]: Closes the menu.
[Group Playback]: Displays sets of images shot in [ ] mode. (Only displayed when a grouped image is selected.)
[Play Movie]: Starts movie playback. (Only displayed when a movie is selected.)
[Slideshow]: Starts slideshow playback. To switch images during playback, press the <><> buttons on the remote control.
[Index Playback]: Displays multiple images in an index.
[Change Display]: Switches display modes

• Pressing buttons, such as the <> button, on the camera will switch control to the camera itself, which will prevent remote control until you return to single-image display.
• Moving the zoom lever on the camera will switch control to the camera itself, which will prevent remote control until you return to single-image display.
