FAQ ID: L00000435
Release date: 19 May 2016
From April 2016 a new system was introduced, which allows the new lenses profiles for Canon cameras and software to be downloaded without needing to update EOS Utility / Digital Photo Professional each time.
When these applications are now installed the - EOS Lens Registration Tool - will also be installed.
Please Note:
* For Lenses with special specifications you may still require EOS Utility/ Digital Photo Professional to be updated.
Software this change was started with
The change to the lens profile system download system for new lenses started from the following versions of Canon software:
Please Note:
- When installing EU 3.4.20 or later, please also install the EOS Lens Registration Tool.
- When installing DPP 4.4.20 or later, both DPP and the EOS Lens Registration Tool will be installed.
Operability and conditions
When acquiring new lens data, EOS Utility/Digital Photo Professional operation is the same as before.
- EOS Utility: In Camera settings, when you click [Register lens aberration correction data], the EOS Lens Registration Tool will start up. At that time, if there is new lens data, it will be displayed.

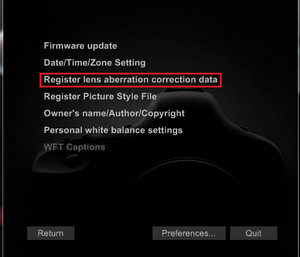

Figure 1

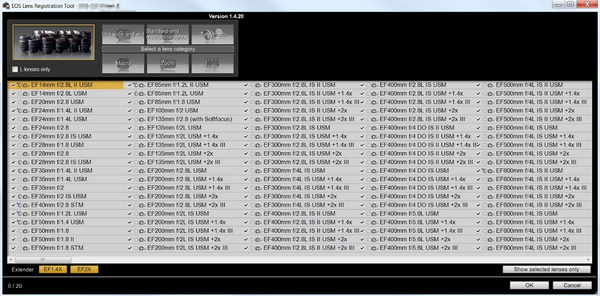

Figure 2
- Digital Photo Professional: When you click [] from the lens correction tool palette, the [Add or Remove lens data] screen (EOS Lens Registration Tool) will be displayed and if there is new lens data, it will be displayed.

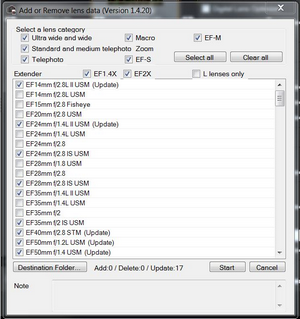

Figure 3
