1. Confirm that the printer is powered on.
2. Open the paper output tray and inner cover (CD-R tray feeder). Memo: Gently open the paper output tray while holding it.
3. Place the CD-R/DVD-R on the CD-R tray. Memo: Prepare a 12 cm/8 cm size CD-R/DVD-R with an ink-jet compatible label surface.

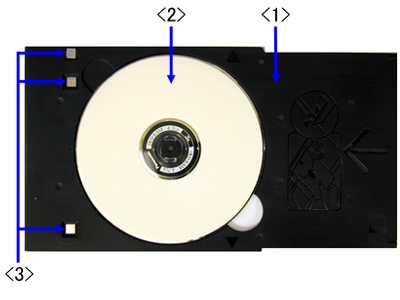

Procedures for setting a 12 cm CD-R/DVD-R

Place the disk on the CD-R tray, with the printable surface facing up.

1. CD-R tray
2. 12 cm size CD-R/DVD-R
3. Reflectors

Note: Do not touch the reflectors on the CD-R tray.

Procedures for setting an 8 cm CD-R

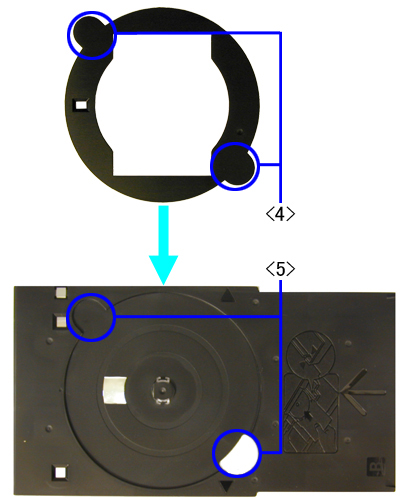

Align the protrusions on both edges of the 8 cm CD-R adapter with the indentations on the CD-R tray, and place the 8 cm CD-R on the CD-R tray.

Note: When printing on an 8 cm CD-R, use the 8 cm CD-R adapter (provided). Otherwise, print quality will be reduced and the CD-R may be damaged.

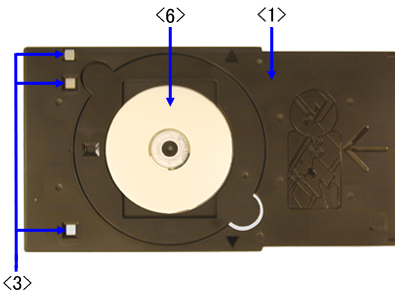

• 1. CD-R tray
• 3. Reflectors
• 4. Protrusions on the 8 cm CD-R adapter
• 5. Indentations used when setting the 8 cm CD-R adapter
• 6. 8 cm CD-R

Note: Do not touch the reflectors on the CD-R tray.

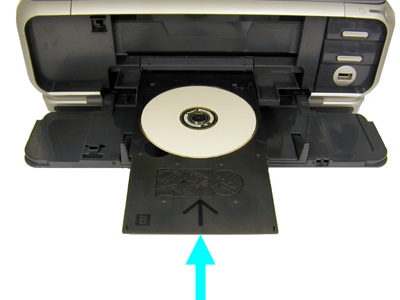

• Install the CD-R tray in the inner cover.

Memo: When printing on a CD-R/DVD-R using an application, do not set the CD-R tray until the "Starting printable disc printing" message is displayed.

If the CD-R tray is set while the printer is preparing to print or performing other operations, the CD-R tray may be ejected. In this case, re-set the CD-R tray, following the instruction displayed.

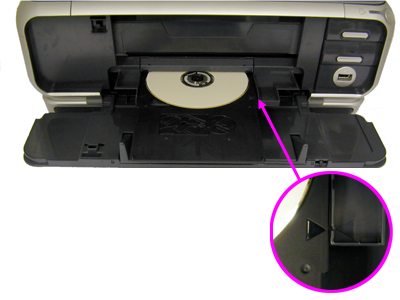

• Insert the CD-R tray so that the arrows of both the CD-R tray and inner cover are aligned. (Check the arrow position of the CD-R tray and inner cover.)
