Viewing Images on a TV

Using the supplied [AV cable], you can connect the camera to a TV to view images you have shot.

1. Turn off the camera and the TV.

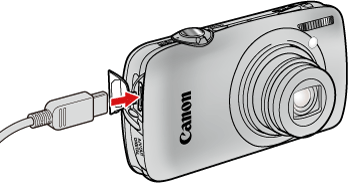

2. Connect the [AV Cable] that is bundled with the camera to the camera's [A/V OUT] terminal.

3. Plug the other ends of the [AV Cable] into the VIDEO IN and AUDIO IN jacks on the TV.

Plug the yellow terminal of the [AV Cable] into the VIDEO IN jack on the TV.
Plug the black terminal of the [AV Cable] into the AUDIO IN jack on the TV. If the TV has two AUDIO IN jacks (for right and left), plug the AV Cable to either one of them.

4. Turn on the TV and switch it to video mode.

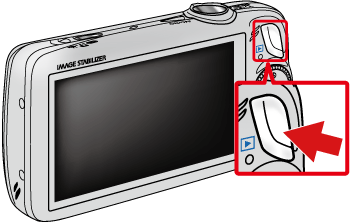

5. Press the < playback > () button to turn on the camera.

The image will appear on the TV (nothing will appear on the screen of the camera).
After you finish viewing, turn off the camera and TV, and unplug the [AV cable].

Viewing Images on a High-Definition TV

By using the HDMI Cable [HTC-100] (sold separately), you can connect the camera to a high-definition TV and enhance your viewing experience.

1. Turn off the camera and the TV.

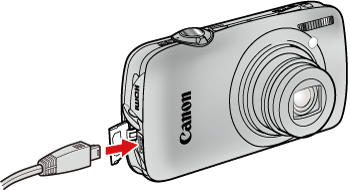

2. Connect the HDMI Cable [HTC-100] (sold separately) to the camera's [HDMI Terminal].

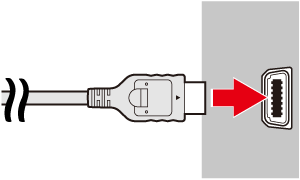

3. Connect the HDMI Cable [HTC-100] (sold separately) to a high-definition TV's [HDMI Terminal].

4. Turn on the TV and switch it to HDMI mode.

5. Press the < playback > () button to turn on the camera.

The image will appear on the TV (nothing will appear on the screen of the camera).
After you finish viewing, turn off the camera and TV, and unplug the [HDMI Cable].
