Lenses for DSLR

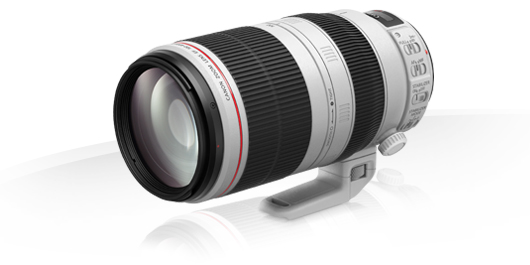

Canon EF 100-400mm f/4.5-5.6L IS II USM

Specifications

Specifications in detail

Optical Features / Specifications

  • 35mm Film Equivalent Focal Length (mm)

    -

  • Angle of View (Horizontal, vertical, diagonal)

    20° - 5°10', 14° - 3°30', 24° - 6°10'

  • Lens Construction (Elements/Groups)

    21/16

  • Number of Diaphragm Blades

    9

  • Minimum Aperture

    32-38(40)¹

  • Closest Focusing Distance (m)

    0.98

  • Maximum Magnification (x)

    0.31(at 400mm)

  • Distance Information

    Yes

  • Image Stabilizer OIS1

    4-stops¹

  • AF Actuator

    Ring USM¹

Accessories

  • Lens Cap

    E-77II

  • Lens Hood

    ET-83D

  • Lens Case/Pouch

    LZ1326

  • Rear End Cap

    Lens Dust Cap E

  • Magnification with Extension Tube EF12 II

    0.38-0.03

  • Magnification with Extension Tube EF25 II

    0.46-0.07

  • Other Accessories

    -

Specifications with 1.4x Extender

  • Maximum Magnification

    0.44 at 400mm

  • AF Possible

    Yes¹

  • Image Stabilizer

    Yes¹

Specifications with 2x Extender

  • Maximum Aperture

    6.3-45 (8-57 at 400mm)

  • Image Stabilizer

    Yes¹

Physical Specifications

  • Filter Diameter (mm)

    77

  • Max. Diameter x Length (mm)2

    94x193

  • Weight (g)

    1640 with tripod mount

*Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.

This in no way effects either the lens or camera performance.

*Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.

This in no way effects either the lens or camera performance.

*Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.

This in no way effects either the lens or camera performance.

¹ Minimum aperture if using 1/3stop increments

¹ Tested under CIPA standards

¹ Full time Manual focus

¹ AF possible only with EOS-1 series, 7D Mark II, 5D Mark III (with firmware 1.2.1) and EOS 80D.

¹ IS will not work with the following cameras EOS-1, EOS 5, EOS 100, EF-M, EOS 1000/F/n/Fn, EOS 700, EOS 10, EOS RT, EOS 600/630, EOS 850, EOS 750, EOS 620, EOS 650

¹ Minimum aperture if using 1/3stop increments

¹ Tested under CIPA standards

¹ Full time Manual focus

¹ AF possible only with EOS-1 series, 7D Mark II, 5D Mark III (with firmware 1.2.1) and EOS 80D.

¹ IS will not work with the following cameras EOS-1, EOS 5, EOS 100, EF-M, EOS 1000/F/n/Fn, EOS 700, EOS 10, EOS RT, EOS 600/630, EOS 850, EOS 750, EOS 620, EOS 650

¹ Minimum aperture if using 1/3stop increments

¹ Tested under CIPA standards

¹ Full time Manual focus

¹ AF possible only with EOS-1 series, 7D Mark II, 5D Mark III (with firmware 1.2.1) and EOS 80D.

¹ IS will not work with the following cameras EOS-1, EOS 5, EOS 100, EF-M, EOS 1000/F/n/Fn, EOS 700, EOS 10, EOS RT, EOS 600/630, EOS 850, EOS 750, EOS 620, EOS 650

  1. Tested under CIPA standards
  2. Lens dimensions when in retracted state
